MAN HW D B d Z n
min.-max. Ref.SUP Ref.INF
205 30 30/50 2+2 3700-6300 529.510 ○ 529.511 ○
Nr. Dim. Ref.
1 25x30x2 SUP 782.501
2 25x30x2 782.502
3 25x30x2 782.503
4 25x30x2 782.504
1 25x30x2 INF 782.505
2 25x30x2 782.506
3 25x30x2 782.507
4 25x30x2 782.508
SUP 707.561
INF 707.953
50x12x1,5 750.106
SUP 707.144
INF 707.139
M8x16 705.542
M10x16 705.551
SW4 706.104
SW5 706.105

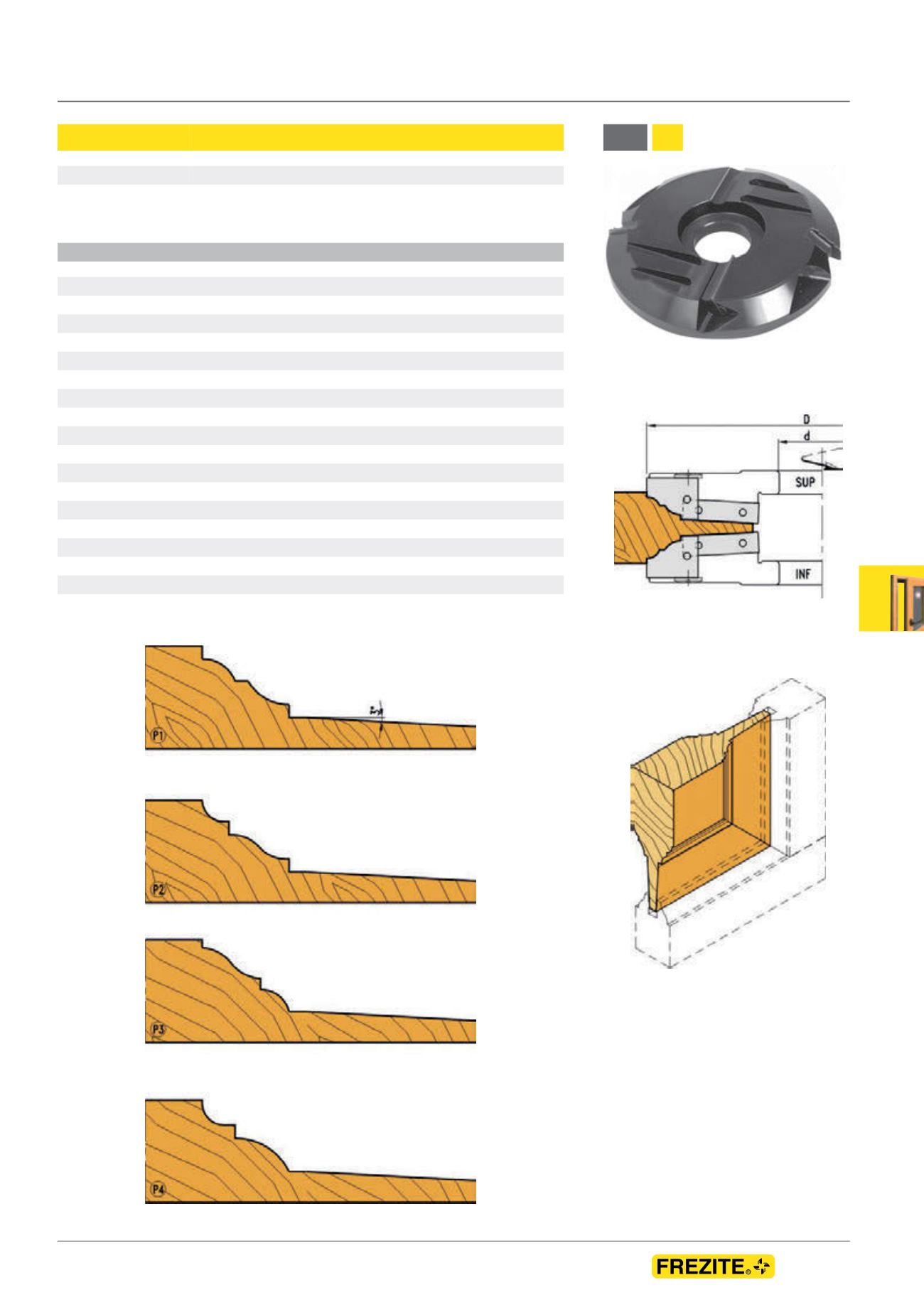

Panel raising cutterhead
Porte-outils plate-bande
○ ○ Cutterhead supplied without knives - Porte-outils livré sans plaquettes
Spare parts - Pièces de rechange
Knife - Plaquette
Clamping wedge - Cale
Knife - Plaquette
Clamping wedge - Cale
Screw - Vis
T Wrench- Clé en T
